MMS1C00-C500

More Views

  • MMS1C00-C500

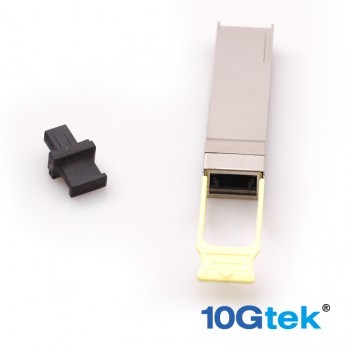

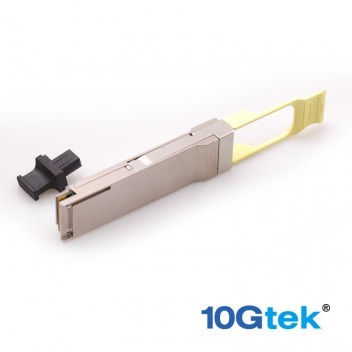

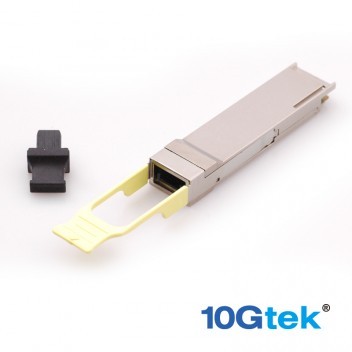

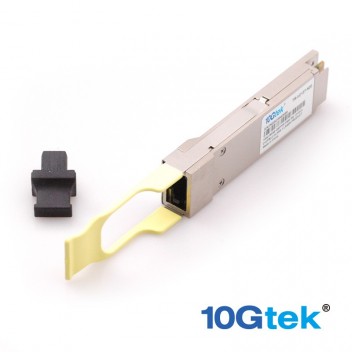

MMS1C00-C500, transceiver, 100GbE, QSFP28, MPO, 1550nm PSM4, up to 2km

SKU: MMS1C00-C500 SKU1: MMS1C00-C500

Availability: In stock

US$359.00
Volume Price: Inquire
  • Model: AMQ28-IR4-02
  • CPN: AMQ28-IR4-02
● For MMS1C00-C500
● 100G QSFP28 IR4 PSM
● MTP/MPO Connector
● SMF
● Wavelength: 1310nm
● 2km
OR
Product Description Shipping & Payment Customer Reviews
MMS1C00-C500

Details

MMS1C00-C500 is a parallel 100Gb/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 2km of single mode fiber. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module can be managed through the I2C two-wire serial interface.

Features:
  • MMS1C00-C500
  • 4 independent full-duplex channels
  • Up to 28Gb/s data rate per channel
  • QSFP28 MSA compliant
  • Compliant to IEEE 802.3bm 100GBASE PSM4
  • Up to 2km reach for G.652 SMF
  • Maximum power consumption 3.5W
  • Single +3.3V power supply
  • Operating case temperature: 0 to 70ºC
  • RoHS-6 compliant
Applications:
  • MMS1C00-C500
  • 100G Ethernet links
  • Infiniband QDR and DDR interconnects
  • Datacenter and Enterprise networking
Part Number Description

Data

Rate(bps)

Wavelength(nm) Reach Connector Fiber Type Power(dBm) S(dBm) Rx Tx Temp (deg C)

Power

Consumption

AMQ28-SR4-M1 QSFP28 SR4 100G 850nm 100m MTP/MPO MMF -6.5~-1.0 -8.6 PIN VCSEL 0~70 <3.5w
ALQ28-LR4- 10 QSFP28 LR4 100G 1290-1310nm 10km LC SMF -4.3~4.5 -10.6 PIN LWDM EML 0~70 <3.5w
QSFP28-IR4-PSM QSFP28 IR4 PSM 100G 1310nm 2km MTP/MPO SMF 1.0~3.5 -9.0 PIN DFB 0~70 <3.5w
ALQ28-CW4-02 QSFP28 CWDM4 100G CWDM 2km LC SMF -6.5~2.5 -10.0 PIN DFB 0~70 <3.5w
CFP4-SR4 CFP4 SR4 100G 850nm 100m MTP/MPO MMF -6.5~-1.0 -8.6 PIN VCSEL 0~70 <3.5w
CFP4-LR4 CFP4 LR4 100G 1290-1310nm 10km LC SMF -1.3~4.5 -8.6 PIN LWDM EML 0~70 <6.0w
AZS85-S28-M1 SFP28 SR 25G 850nm 100m LC MMF -7.5~2.5 -10.0 PIN VCSEL 0~70 <3.3w
AZS13-S28-10 SFP28 LR 25G 1290-1330nm 10km LC SMF -8.4~3.0 -10.4 PIN DFB 0~70 <3.3w

QSFP28/SFP28 Transceivers
